Specification

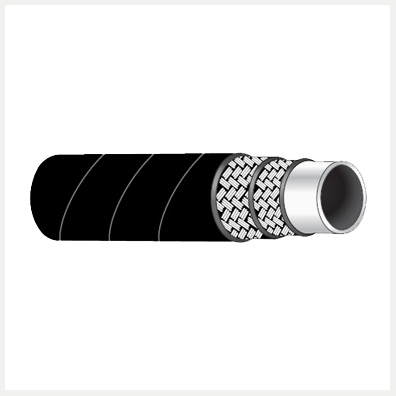

High Temperature Steam Hose – Type II (Double Wire)

Construction

  • Tube : Made of heat resistant synthetic rubber
  • Reinforcement:Two Braid of HTS Wire
  • Cover: Synthetic rubber cover, oil, weather & abrasion resistant
  • Temperature :Upto 200°C
  • Steam Pressure :200 psi
  • Electrical Continuity :Yes
  • End Connections :Swaged, crimped or Reusable type
  • I.D. Inches
  • I.D. Mm
  • O.D. Mm
  • Minimum Bend Radius Mm
  • 3/16
  • 4.8
  • 14.8
  • 90
  • 1/4
  • 6.4
  • 17.0
  • 100
  • 5/16
  • 7.9
  • 19.1
  • 115
  • 3/8
  • 9.5
  • 22.0
  • 125
  • 1/2
  • 12.7
  • 26.7
  • 180
  • 5/8
  • 15.9
  • 29.9
  • 200
  • 3/4
  • 19.0
  • 33.4
  • 240
  • 1
  • 25.4
  • 40.0
  • 380
  • 11/4
  • 31.8
  • 50.0
  • 420
  • 11/2
  • 38.1
  • 56.7
  • 510
  • 2
  • 50.8
  • 70.0
  • 635
