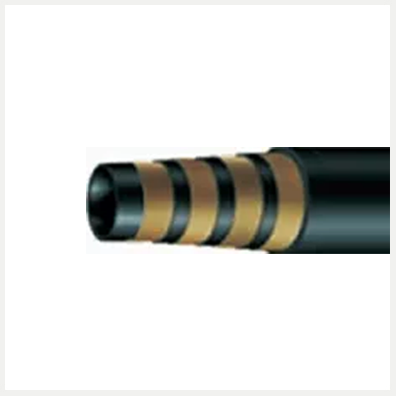

4SP

Specification

Standard: EN 856-4SP

Construction

Core : Oil and Water resistant Synthetic rubber
Reinforcement : Four high tensile steel wire spirals
Cover : Black Color, Synthetic rubber resistant to oil, weather and abrasion

Applications

Application Very high pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines For use with petroleum, synthetic or water based fluids in Hydraulic systems Suitable for Earthmoving & Material handling equipments and machineries/systems

Temperature Range:

Continuous: -40°C to +100°C
Intermittent: max. 120°C

Dash size
DN
Hose I.D. (Nom.)
Reinforcement O.D (Nom.)
Hose O.D. (Nom.)
Working Pressure
Min. Burst Pressure
Min. Bend Radius

- inch
- mm
- inch
- mm
- psi
- bar
- psi
- bar
- psi
- bar
- inch
- mm

-4
6
- 1/4
- 6.4
- 0.58
- 14.7
- 0.69
- 17.6
- 6525
- 450
- 26100
- 1800
- 150
- 5.90

-6
10
- 3/8
- 9.5
- 0.69
- 17.5
- 0.83
- 21.1
- 6450
- 445
- 25810
- 1780
- 180
- 7.10

-8
12
- 1/2
- 12.7
- 0.80
- 20.2
- 0.96
- 24.3
- 6015
- 415
- 24070
- 1660
- 230
- 9.05

-10
16
- 5/8
- 16.0
- 0.94
- 23.8
- 1.10
- 27.9
- 5075
- 350
- 20300
- 1400
- 250
- 9.85

-12
20
- 3/4
- 19.0
- 1.11
- 28.2
- 1.26
- 31.9
- 5075
- 350
- 20300
- 1400
- 300
- 11.80

-16
25
- 1
- 25.4
- 1.39
- 35.3
- 1.54
- 39.2
- 4060
- 280
- 16240
- 1120
- 340
- 13.40

-20
32
- 1.1/4
- 31.8
- 1.81
- 46.0
- 1.98
- 50.2
- 3045
- 210
- 12180
- 840
- 460
- 18.10

-24
38
- 1.1/2
- 38.1
- 2.06
- 52.4
- 2.23
- 56.6
- 2680
- 185
- 10730
- 740
- 560
- 22.05

-32
50
- 2
- 50.8
- 2.57
- 65.3
- 2.72
- 69.2
- 2390
- 165
- 9570
- 660
- 660
- 26.00
