PRODUCTS

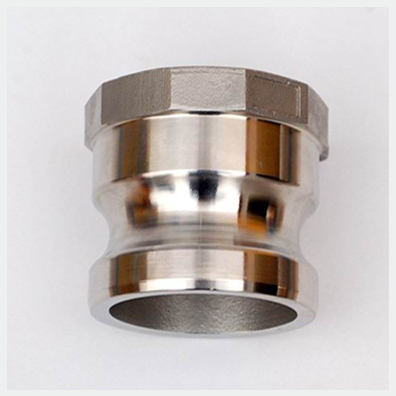

Stainless Steel Camlock Couplings.

Stainless steel camlock coupling has a wide application in Chemical,Food & Pharma Industries. It effectively prevents contamination of product to be transported. Our stainless steel camlocks are manufactured in SS304 & SS 316 grades which will keep lustrous appearance with long usage.

Stainless steel camlock fittings comes into Type A, B, C, D, E, F, DC & DP with sizes ranging from 1/2" to 8".

These couplers & adapters are interchangeable.

Handles (cam arms) and finger rings are made of stainless steel 304. Standard gaskets for stainless steel camlock couplings are black EPDM, Viton, PTFE & Neoprene gaskets are also supplied for higher working pressure. Always make sure the material is compatible with the liquids or powders to be delivered.

    Advantages:

  • Handles high temperature
  • Excellent corrosive resistance
  • Long life expectancy

    Product description:

  • Body material: Stainless Steel 304/316
  • Handles & pins: Stainless Steel 304
  • Types: A, B, C, D, E, F, DC & DP
  • Size: 1/2" to 8"
  • Working pressure: no more than 250 psi
  • Temperature range: -150°F to +500°F (-101°C to +260°C)
