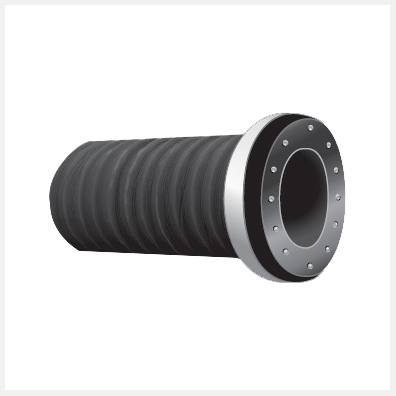

Phosphoric Acid Suction & Discharge Hose

Enquire Now

Construction

  • Lining : Lining resistant to phosphoric acid & gypsum
  • Reinforcement: Several special high tensile textile fabric plies embedded with G.I. wire for suction & pressure loading, fitted with a rubber flange or with a rubber collar backing with steel flanges
  • Cover : Resistant to weather abrasion and petroleum products
  • Sizes : Heat, Weather and abrasion resistant
  • Maximum I.D. : 300mm
  • Temperature : 150°C
  • MBR :8 multiply by dia

Applications

These hoses are very flexible allowing full flow. Abrasion & acid resistant available with or without wire reinforcement. Wire reinforcement type has coil of steel wire buried in hose to keep it from collapsing under full suction. Used in both suction & discharge hose. Flanged ends are drilled to bolt to companion flange using standard flat faced flanges. They provide a tight seal without a gasket since the flanges rotate freely. Alignment of bolt holes is easy, reusing installation time to minimum.

Working pressure :3.5 kgf/cm2 Type – I

                                : 5.0 kgf/cm2 Type – II

                                : 10.0 kgf/cm2 Type – III
