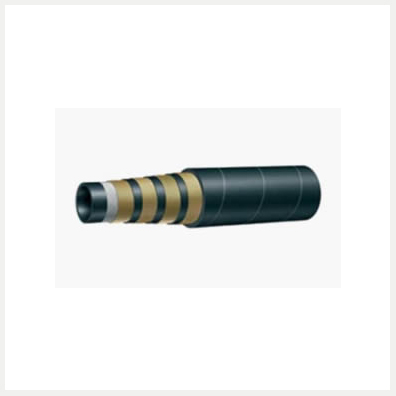

4SH

Applicable Standard

Standard: EN 856-4SH

Construction

Core : Oil and Water resistant Synthetic rubber
Reinforcement : Four high tensile steel wire spirals
Cover : Black Color, Synthetic rubber resistant to oil, weather and abrasion

Temperature Range:

Continuous : -40°C to +100°C
Intermittent : max. 120°C

Dash size
DN
Hose I.D. (Nom.)
Reinforcement O.D (Nom.)
Hose O.D. (Nom.)
Working Pressure
Min. Burst Pressure
Min. Bend Radius

- inch
- mm
- inch
- mm
- psi
- bar
- psi
- bar
- psi
- bar
- inch
- mm

-12
20
- 3/4
- 19.0
- 1.12
- 28.4
- 1.26
- 31.9
- 6090
- 420
- 24360
- 1680
- 280
- 11.00

-16
25
- 1
- 25.4
- 1.39
- 35.2
- 1.51
- 38.3
- 5510
- 380
- 22040
- 1520
- 340
- 13.40

-20
32
- 1.1/4
- 31.8
- 1.67
- 42.3
- 1.77
- 44.9
- 4710
- 325
- 18850
- 1300
- 460
- 18.10

-24
38
- 1.1/2
- 38.1
- 1.92
- 48.8
- 2.08
- 52.9
- 4205
- 290
- 16820
- 1160
- 560
- 22.05

-32
50
- 2
- 50.8
- 2.49
- 63.2
- 2.66
- 67.5
- 3625
- 250
- 14500
- 1000
- 700
- 27.55
