Single wire braided

Enquire Now

Specification

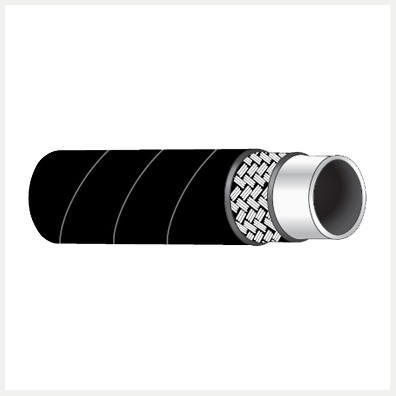

High Temperature Steam Hose – Type I (Single Wire)

Construction

  • Tube : Made of heat resistant synthetic rubber
  • Reinforcement: One Braid of HTS Wire
  • Cover: Synthetic rubber cover, oil, weather & abrasion resistant
  • Temperature :Upto 200°C
  • Steam Pressure :150 psi or 10 kgf/cm 2
  • Electrical Continuity :Yes
  • End Connections : Swaged, crimped or Reusable type
  • I.D. Inches
  • I.D. Mm
  • O.D. Mm
  • Minimum Bend Radius Mm
  • 3/16
  • 4.8
  • 12.8
  • 90
  • 1/4
  • 6.4
  • 15.0
  • 100
  • 5/16
  • 7.9
  • 17.1
  • 115
  • 3/8
  • 9.5
  • 20.0
  • 125
  • 1/2
  • 12.7
  • 24.7
  • 180
  • 5/8
  • 15.9
  • 27.9
  • 200
  • 3/4
  • 19.0
  • 31.4
  • 240
  • 1
  • 25.4
  • 38.0
  • 380
  • 11/4
  • 31.8
  • 47.2
  • 420
  • 11/2
  • 38.1
  • 53.5
  • 510
  • 2
  • 50.8
  • 66.8
  • 635
