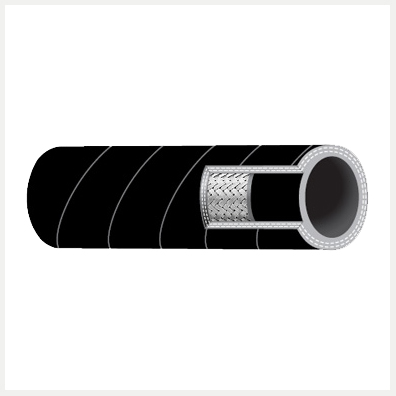

SAE – 100 R1 / EN 853 1SN/ DIN 20022 1S

Specification

Conforming to Std. SAE – 100 R1

Construction

Core : Oil & water resistant Synthetic rubber
Reinforcement : Single steel wire braid
Cover : Black Color, Synthetic rubber resistant to weather and abrasion, oil & ozone.

Applications

For high pressure hydraulic oils, fuel, lubricating oils, water and air.

I.D. inches
I.D. Mm
O.D. Mm
Working Pressure Psi
Test Pressure Psi
Min. Bend Radius Mm

^3/16
4.8
11.8
3000
6000
89

^1/4
6.4
13.4
2750
5500
102

^5/16
7.9
15.0
2500
5000
114

^3/8
9.5
17.4
2250
4500
127

^13/32
10.3
18.9
2250
4500
140

^1/2
12.7
20.5
2000
4000
178

^5/8
15.9
23.7
1500
3000
203

^3/4
19.0
27.7
1250
2500
241

^7/8
22.2
31.8
1125
2250
279

1
25.4
35.6
1000
2000
305

1^1/4
38.1
44.8
625
1250
419

1^1/2
38.1
50.6
500
1000
508

2
50.8
64.1
375
750
635
