SAE – 100 R2 / EN 853 2SN / DIN 20022 2SN

Specification

Conforming to Std. SAE – 100 R2

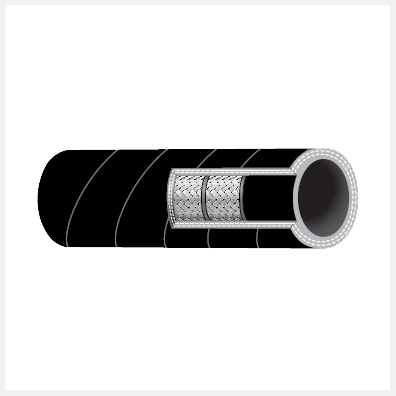

Construction

Tube : Core: Oil & water resistant Synthetic rubber
Reinforcement : Double steel wire braids
Cover : Black Color, Synthetic rubber resistant to weather and abrasion ,oil & ozone

Applications

For high pressure hydraulic oils, fuel, lubricating oils, water and air.

I.D. inches
I.D. Mm
O.D. Mm
Working Pressure Psi
Test Pressure Psi
Min. Bend Radius Mm

^3/16
4.8
14.1
5000
10000
89

^1/4
6.4
15.7
5000
10000
102

^5/16
7.9
17.3
4250
8500
114

^3/8
9.5
19.7
4000
8000
127

^1/2
12.7
23.1
3500
7000
178

^5/8
15.9
26.3
2750
5500
203

^3/4
19.0
30.2
2250
4500
241

^7/8
22.2
33.4
2000
4000
279

1
25.4
38.9
2000
4000
305

1^1/4
31.8
49.6
1650
3250
419

1^1/2
38.1
56.5
1250
2500
508

2
50.8
68.6
1125
2250
635
