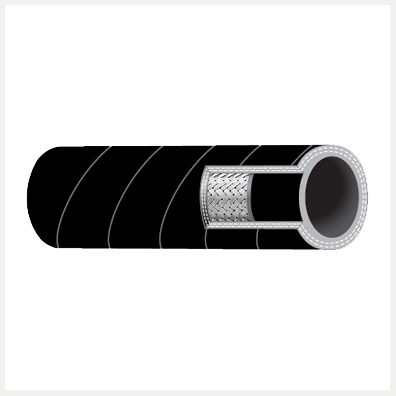

Liquified Petroleum Gas (LPG) Hose

Enquire Now

Specification

IS 9573 / 1980 OR BS 4089 / BS EN 1762 : 2003

Construction

Lining : Suitable rubber compound resistant to liquefied petroleum gas

Reinforcement :The reinforcement shall be of woven textile fabric or braided textile yarn, natural or synthetic or combination of both or braided with HTS wire

Cover : The cover shall be of rubber compound resistant to abrasion, weather, ozone and petroleum fuel

Sizes : The hoses are available from 8 mm to 75 mm

Test : Internal Hydraulic Burst Pressure 100 Kgf/cm2

Electrical Continuity : Can be provided on a special request

End Connections : Flanged or threaded type

Applications

This hose is suitable for use in LPG vapour phase and LPG/Air installations. This hose can also be put to wet use i.e., permanently filled with liquid and in the temperature range from 0°C to 40°C.
